These are boiler plates that can withstand high pressure and temperatures. Their quality, processing requirements and properties are governed by EN 10028-3. They are characterized by good weldability and corrosion resistance. You will use them not only in the chemical, food, pharmaceutical, but also in the energy industry. It is also suitable for more demanding applications.
Need more information? Leave us your contact information and we will get back to you within 3 days.
Properties and use of fine-grained steel boiler plates according to EN 10028-3
Boiler plates made of fine-grained stainless steel are distinguished by excellent resistance to high pressure, temperature and corrosion. They are characterized by excellent weldability and low carbon content. Boiler plates made of fine-grained steel, whose technical requirements are specified by regulation EN 10028-3, have guaranteed mechanical properties at low (−50 ℃) and high (400 ℃) temperatures.

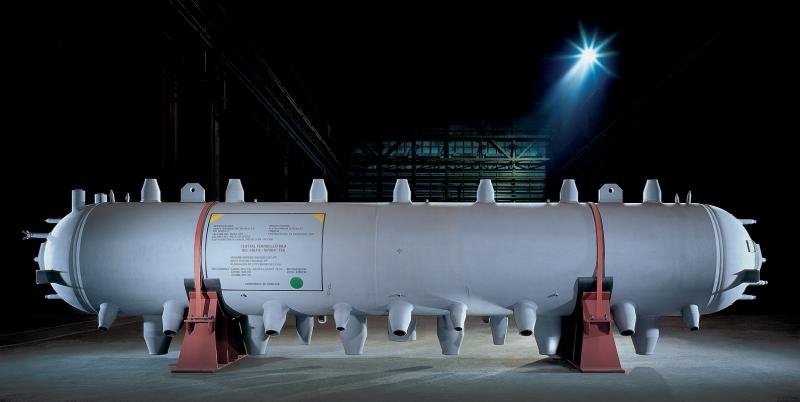

Their properties guarantee use even in demanding applications permanently exposed to high temperatures and pressure. Suitable for extremely stressed pressure vessels and equipment. You will use them on boilers, reactors, gas reservoirs and transport containers. They are also suitable for production of condensers, compressors, turbines and where handling of coolants is required. Boiler plates can be used in the chemical, food, pharmaceutical and petrochemical industries or in the field of energy, waste management or the environment.
Choose from a wide range of sizes. We supply sheets in the following dimensions:
- length: max. 18,000 mm,
- width: 1000-3200mm,
- thickness: 5-100 mm,
- weight: max. 12,500 kg.
The stated dimensions are only approximate. The resulting appearance depends on the combination of individual parameters and material specification. Upon agreement, we are able to produce sheet metal up to a length of 21,000 mm and a thickness of 200 mm. For more information contact us.
Equivalent marking of steels
| EN 10028-3 | DIN 17102 |
|---|---|
| Quality P275NH | WStE 285 |
| Quality P275NL1 | TStE 285 |
| Quality P275NL2 | EStE 285 |
| Quality P355N | StE 355 |
| Quality P355NH | WStE 355 |
| Quality P355NL1 | TStE 355 |
| Quality P355NL2 | EStE 355 |
| Quality P460NH | WStE 460 |
| Quality P460NL1 | TStE 460 |
| Quality P460NL2 | EStE 460 |
Basic characteristics of individual qualities
| Steel brand | Minimum yield strength ReH1) [MPa] |
Minimum yield strength 0.2% Rp022) [MPa] |
Strength limit Rm [MPa] |
Minimum ductility [%] |
Minimum impact work KV [°C/J] |
CEV max.3) | Thickness4) [mm] |
|---|---|---|---|---|---|---|---|
| P275NH/1.0487 | 275 | 179 | 390–510 | 24 | -20/30 | 0.40 | 5-80 |
| P275NL1/1.0488 | 275 | 179 | 390–510 | 24 | -40/27 | 0.40 | 5-80 |
| P275NL2/1.1104 | 275 | 179 | 390–510 | 24 | -50/27 | 0.40 | 5-80 |
| P355N/1.0562 | 355 | - | 490-630 | 22 | -20/30 | 0.43 | 5-80 |
| P355NH/1.0565 | 355 | 232 | 490-630 | 22 | -20/30 | 0.43 | 5-80 |
| P355NL1/1.0566 | 355 | 232 | 490-630 | 22 | -40/27 | 0.43 | 5-80 |
| P355NL2/1.1106 | 355 | 232 | 490-630 | 22 | -50/27 | 0.43 | 5-80 |
| P460NH/1.8935 | 460 | 300 | 570-720 | 17 | -20/30 | 0.53 | 6-80 |
| P460NL1/1.8915 | 460 | 300 | 570-720 | 17 | -40/27 | 0.53 | 6-80 |
| P460NL2/1.8918 | 460 | 300 | 570-720 | 17 | -50/27 | 0.53 | 6-80 |
- Valid for thicknesses up to 16 mm, larger thicknesses according to the standard
- Testing by agreement, values apply to a temperature of 300 °C and a thickness of up to 16 mm, other temperatures or greater thickness according to the standard
- Maximum carbon equivalent value according to the relationship
by agreement - Greater thickness up to 100 mm by agreement
- By agreement according to EU PED 2014/68/EU and AD 2000 – Merkblatt W1/W10
